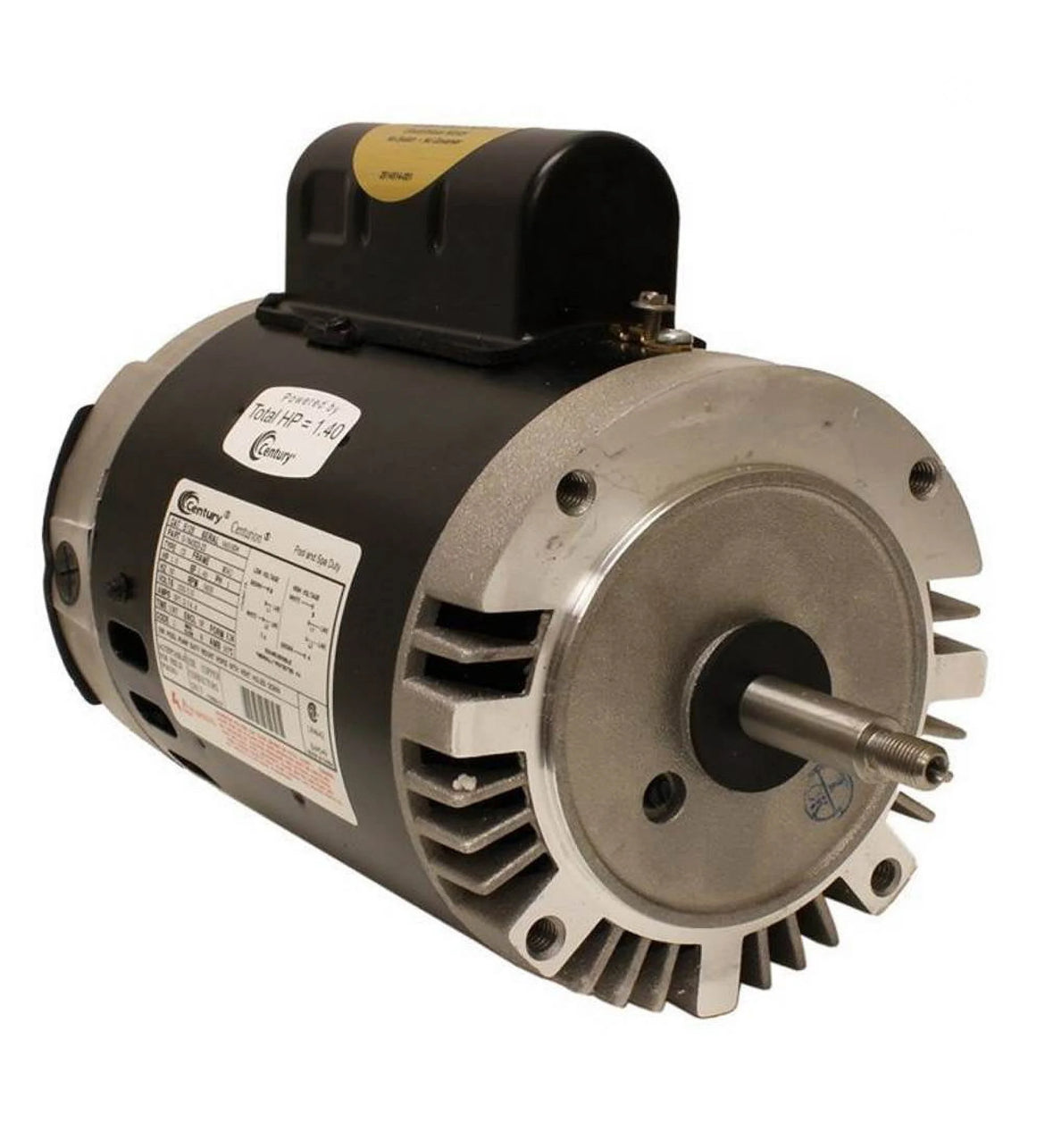

Centurion Switchless Pump Motor B128

$321.42 USD

Sale Sold out

Full-rated 1-horsepower 3,450 RPM C-face 56J frame replacement pool pump motor
For use with above-ground and in-ground swimming pools
Part Number: B128
115/230-volt power; open drip-proof housing ensures cooler operation and extends the life of your motor
Compatible pumps include: Jandy and Marlow
Not California Title 20 Compliant
Specifications:
Product type: Pool pump motor
Service factor: 1.4
Voltage: 115/230 volts
Horsepower: 1 HP
RPM: 3,450
Amperage: 14.4/7.2 amps
Hertz: 60
Surge protector: Automatic
Ambient temperature: 122 degrees Fahrenheit
Start type: Capacitor
Insulation: Class B
Motor phase: Single-speed
Rotation: CCW pump end
Bearing type: Sealed ball bearings
Max load: 115-volt: 14.4 amps; 230-volt: 7.2 amps
Flange type: C-face
Shaft type: Threaded 303 stainless steel
Motor frame size: 56J
Motor housing: Open drip-proof
Pool type: Above-ground, in-ground
Material: Stainless steel
Color: Black
Dimensions (L x W x H): 12 x 8.5 x 6.5 inches
Weight: 32 pounds
Manufacturer warranty: 1-year warranty
